8K@60 HDMI 2.1 and ARC Audio Extractor/Adapter, HDMI Audio to Optical, RCA R/L, Support 4K@120Hz, HDR10+, Dolby Vision, Dolby True Atmos, DTS-HD Audio Pass Through
Product details
| Management number | 221605401 | Release Date | 2026/05/03 | List Price | US$26.60 | Model Number | 221605401 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

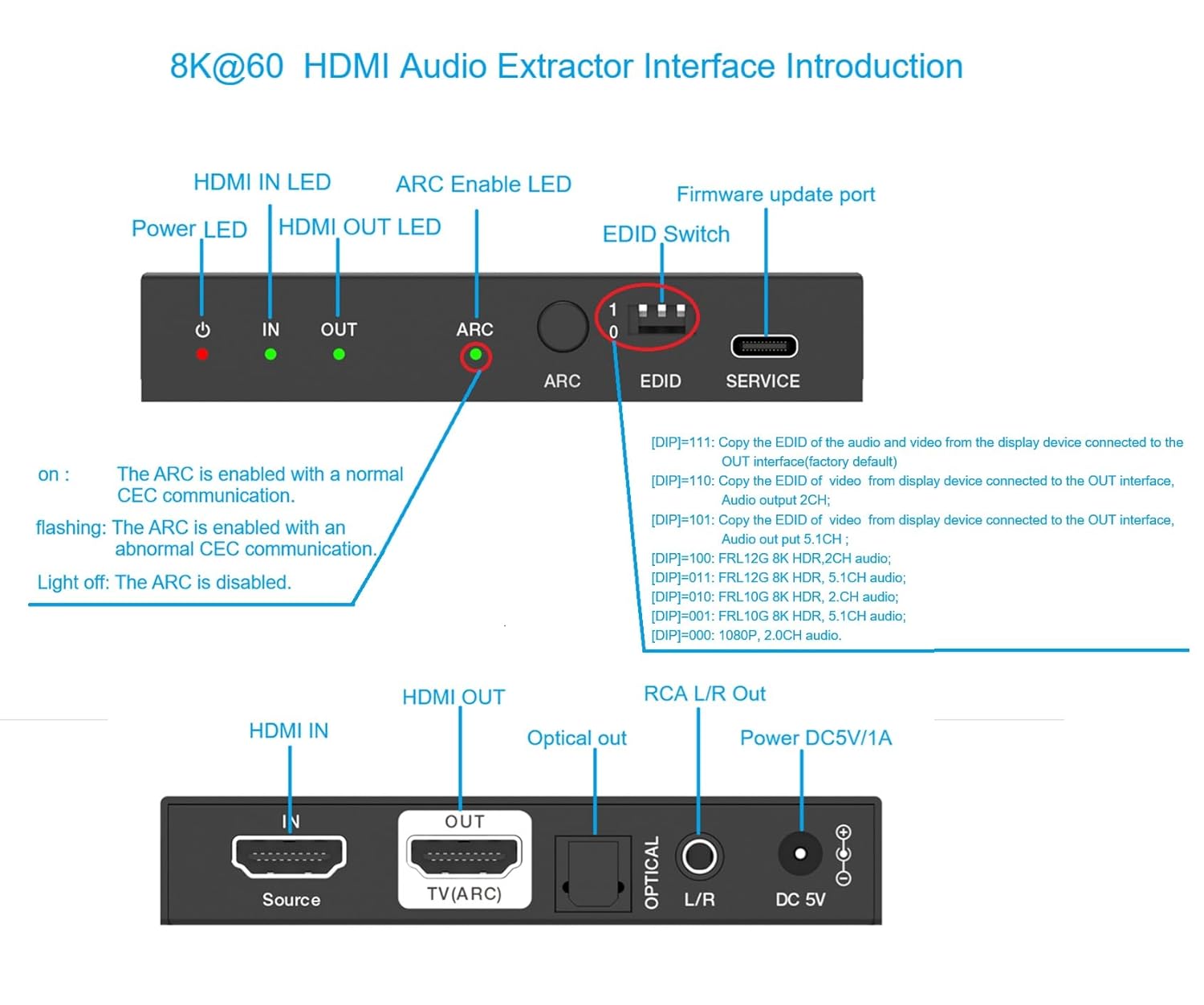

This 48Gbps ARC Audio Extractor is designed for extract audio signals from an HDMI source or TV with HDMI ARC port, and output digital S/PDIF audio or analog audio to audio system. It supports data rates up to 48Gbps complying with HDMI 2.1 and HDCP 2.3 requirements. It includes several features for ease of integration, such as EDID management and cable equalization. It provides an easy solution for HDMI to send video to display display device and audio signals to sound system.

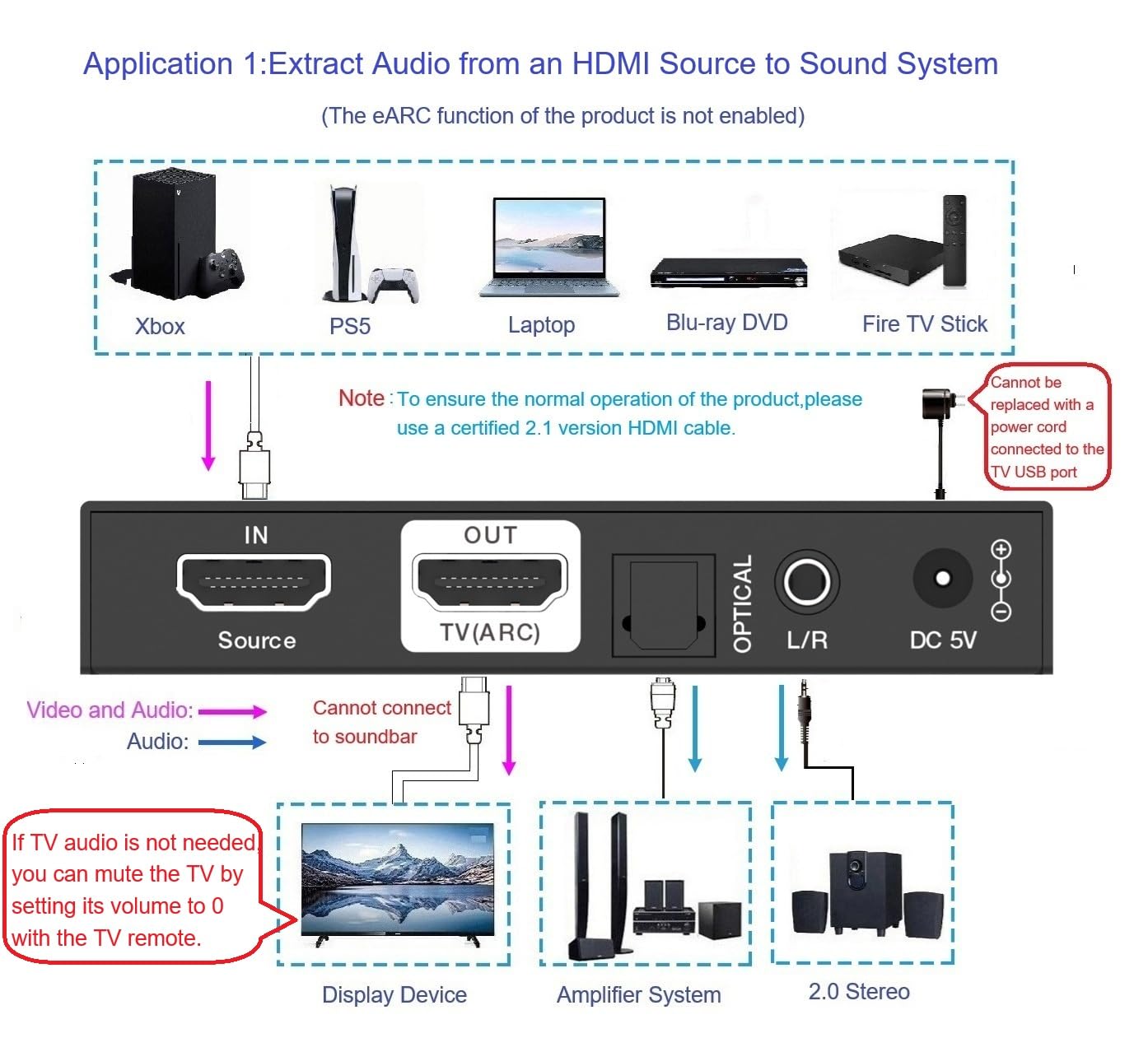

- 【HDMI2.1 Audio extractor】:It can extract audio signals from HDMI input sources(Such as PS5, Fire TV stick,Laptop,Blu ray DVD,Apple TV) ,send HDMI signal to display device and audio to sound system through optical , RCA L/R port
- ARC Audio extractor】It can extract audio signals from TV with HDMI ARC port, audio signals can be transmitted to a stereo audio or sound system through optical , RCA L/R port.
- 【Technical Specifications】Support 48Gbps FRL and 18Gbps TMDS video bandwidth; Support video resolution up to 8K@60Hz 4:2:0 12bit, 4K@120Hz 4:4:4 12bit; Support VRR, ALLM, QMS, QFT, SBTM; Support HDR, HDR 10, HDR 10+, Dolby Vision, HLG pass-through.Support LPCM 7.1CH, Dolby TrueHD, Atmos and DTS-HD Master, DSD Audio pass-through.

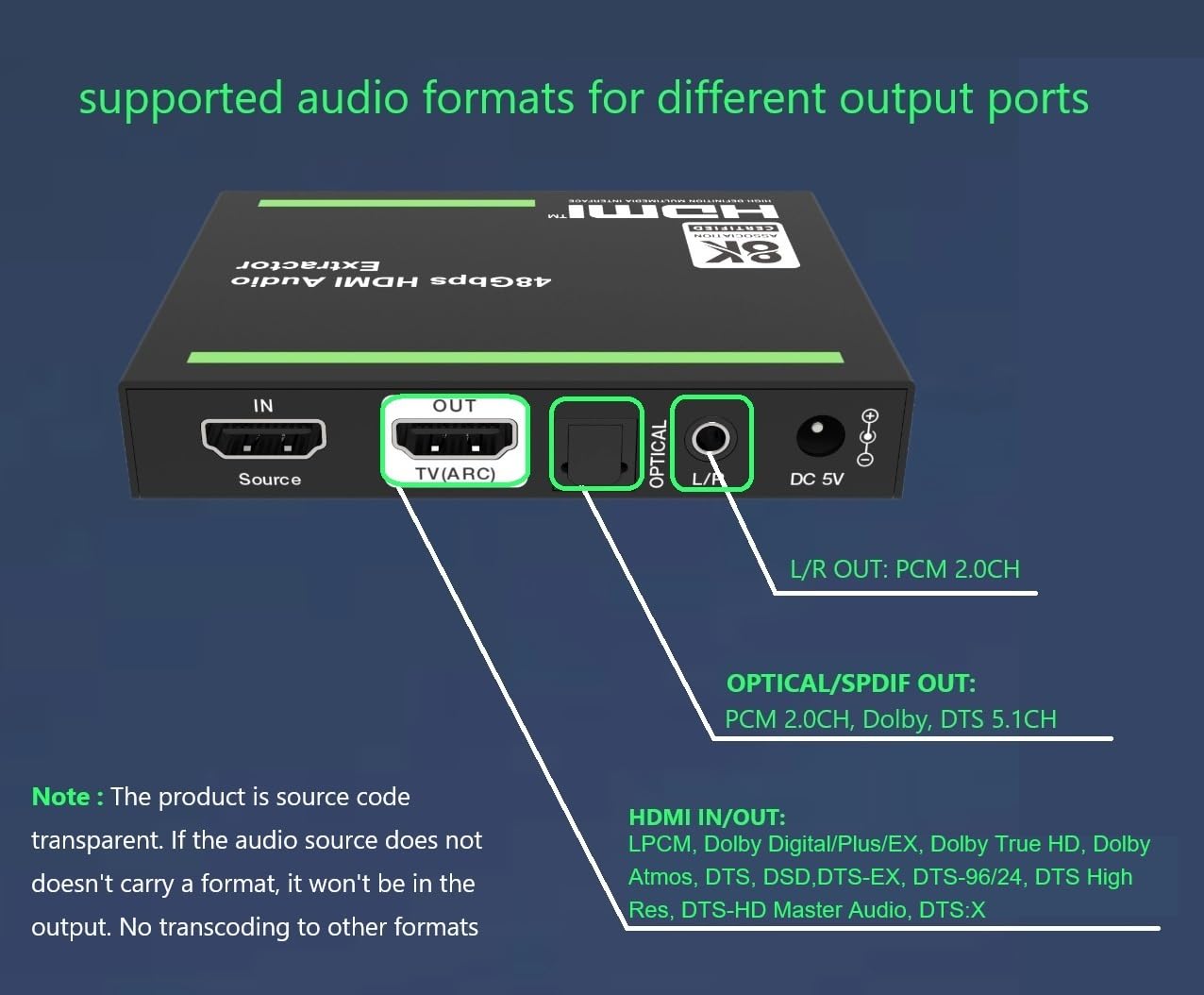

- 【Audio Out Formats】OPTICAL OUT: PCM 2.0CH, Dolby, DTS 5.1CH；L/R OUT: PCM 2.0CH；When the source is 5.1 audio，output via optical as 5.1, there is no sound from L/R; when the source is 2.0 audio, both the optical and L/R outputs 2.0 audio.
| Interface | HDMI, Optical, RCA |
|---|---|
| Brand Name | Wilxisum |
| Item Weight | 6.7 Ounces |
| Part Number | WX-WSEX-01 |
| Manufacturer | Wilxisum |
| Material Type | Metal |
| Number of Pins | 23 |
| Number of Channels | 1 |
| Included Components | Audio Extractor |
| Item Dimensions L x W | 3.74"L x 0.63"W |
| Maximum Supply Voltage | 5 Volts |
| Minimum Supply Voltage | 5 Volts |
| Upper Temperature Rating | 40 Degrees Celsius |
